Wrangler JL Spare Tire Relocation Bracket Kit TeraFlex

The TeraFlex JL: Spare Tire Relocation Bracket allows you to retain the factory spare tire mounting bracket with minimal modifications when stepping up to larger tires.

This slim-mount bracket raises the spare tire up 2 inch and out 1.35 inch – enough to fit a 37 inch tire perfectly into the rear bumper tire well.
Features/Benefits:

• Moves spare tire carrier up 2 inch and out 1.35 inch – fit up to a 37 inch tire in the rear bumper tire well
• Bracket spacers allow for various wheel offsets
• Provide up to 2.85 inch of adjustment
• Only relocation bracket kit that includes adjustable tire isolators
• Bracket constructed from extruded 6061-T6 aluminum w/ an architectural black anodized finish

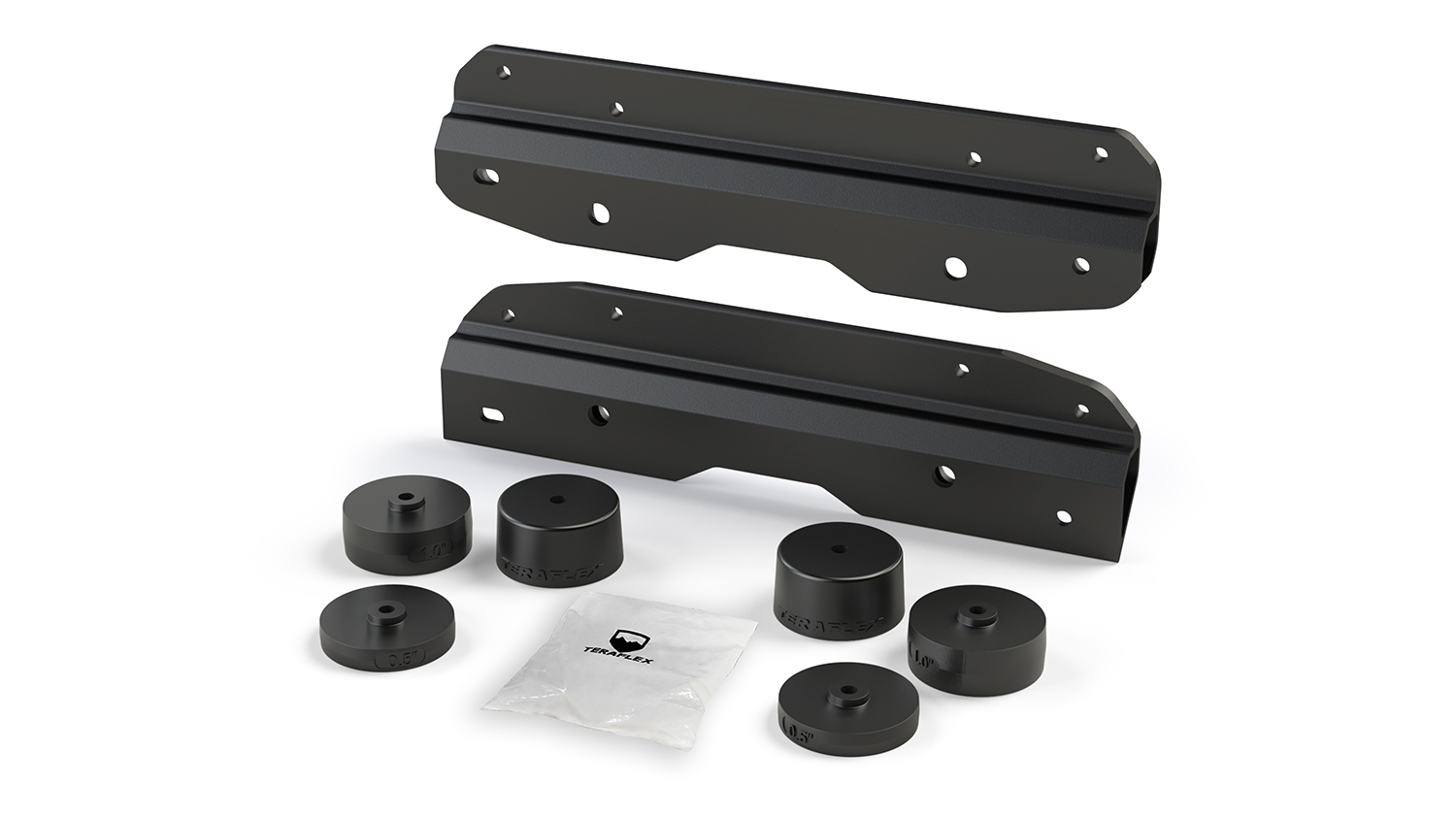

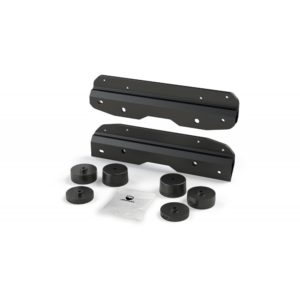

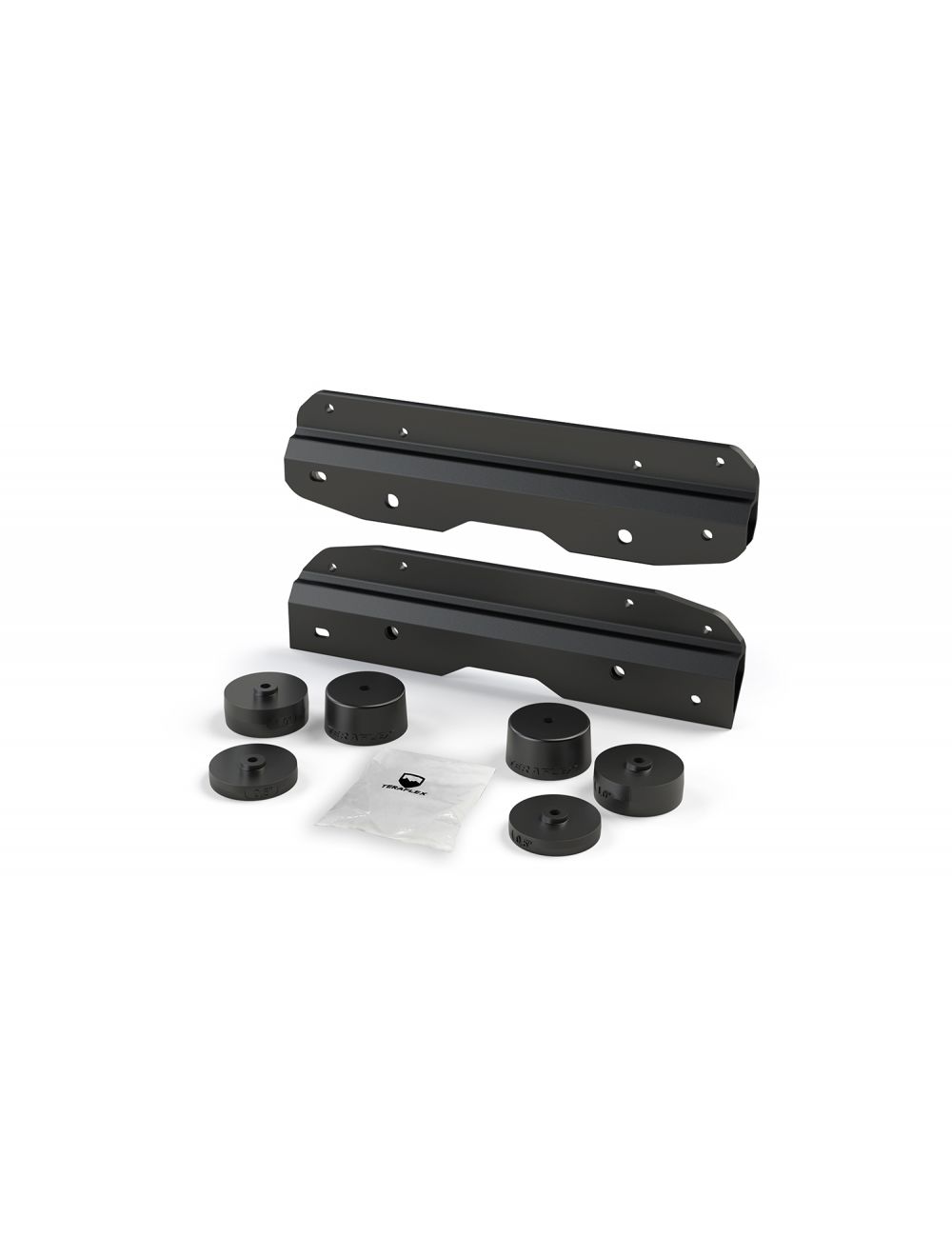

Includes:

• Upper Spare Tire Relocation Bracket
• Lower Spare Tire Relocation Bracket
• Injection molded HDPE spacers
• All necessary hardware

Fits:

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

Specs:

• Max Tire Diameter: 37 Inch

Install Time:

• 1 Hour

– TERA 1909200

Fitment:

Doors:

Location:

Lift:

Tire size max: 37 Inch

Includes Shocks:

Installation Time:

Material: Aluminum

UPC Code:

Last Update: 2022-07-08 15:28:37

Installation instruction : download
