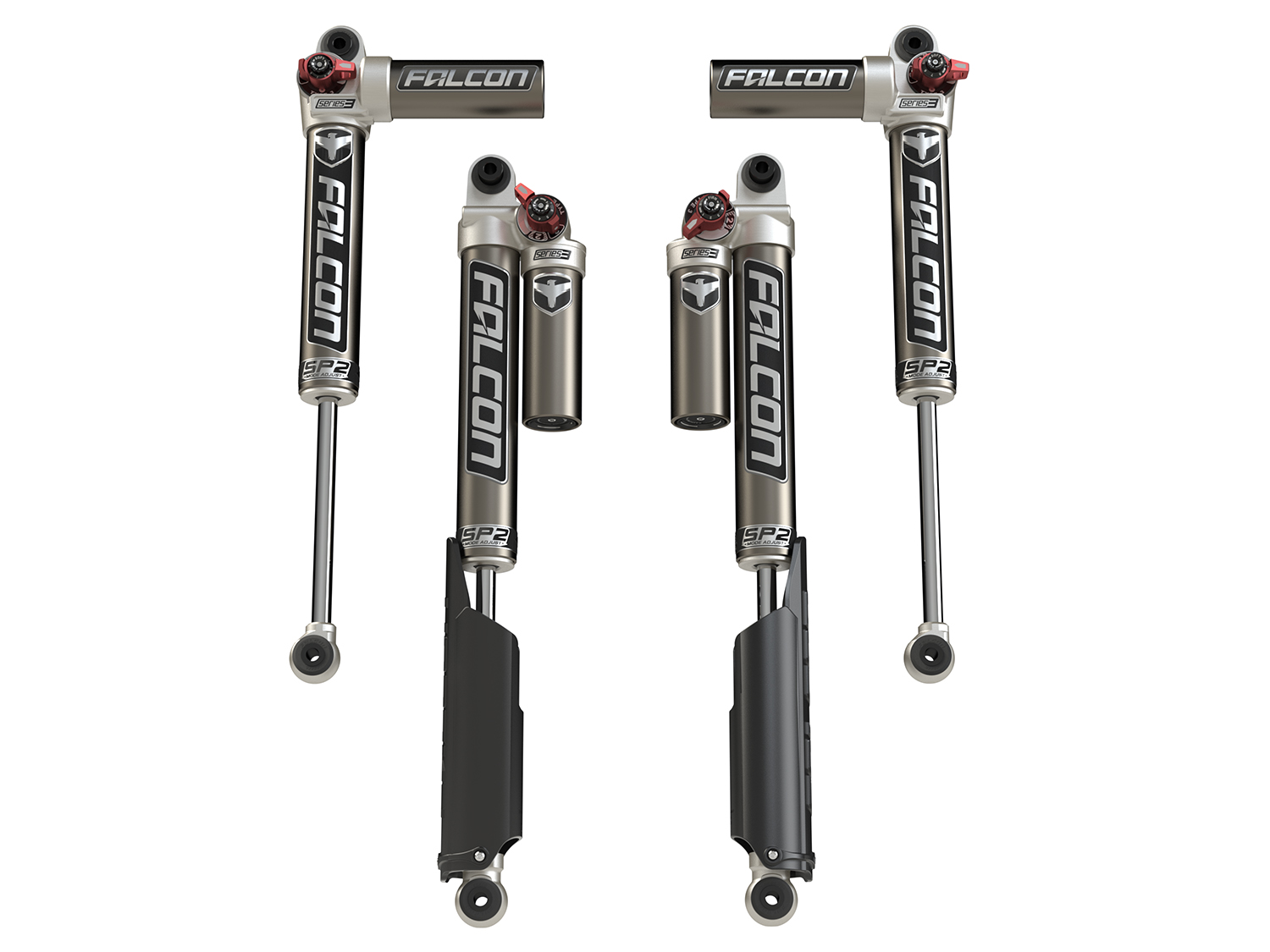

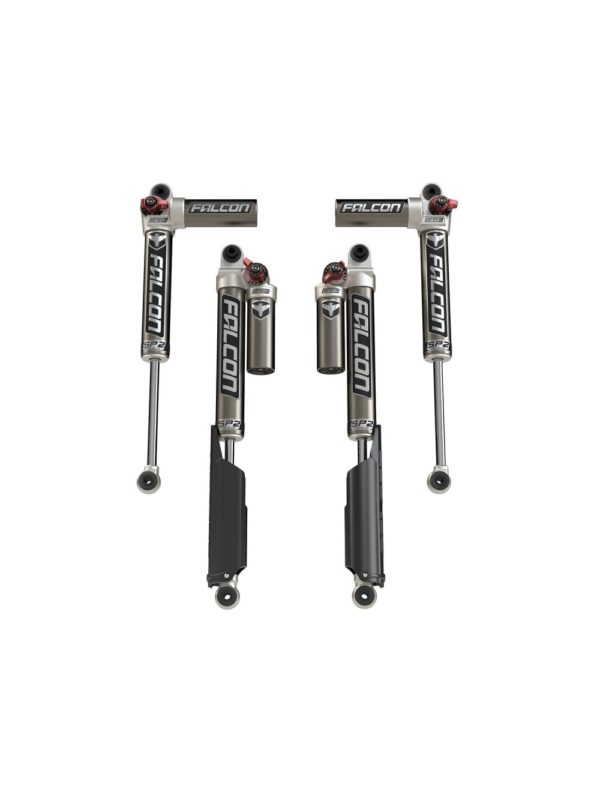

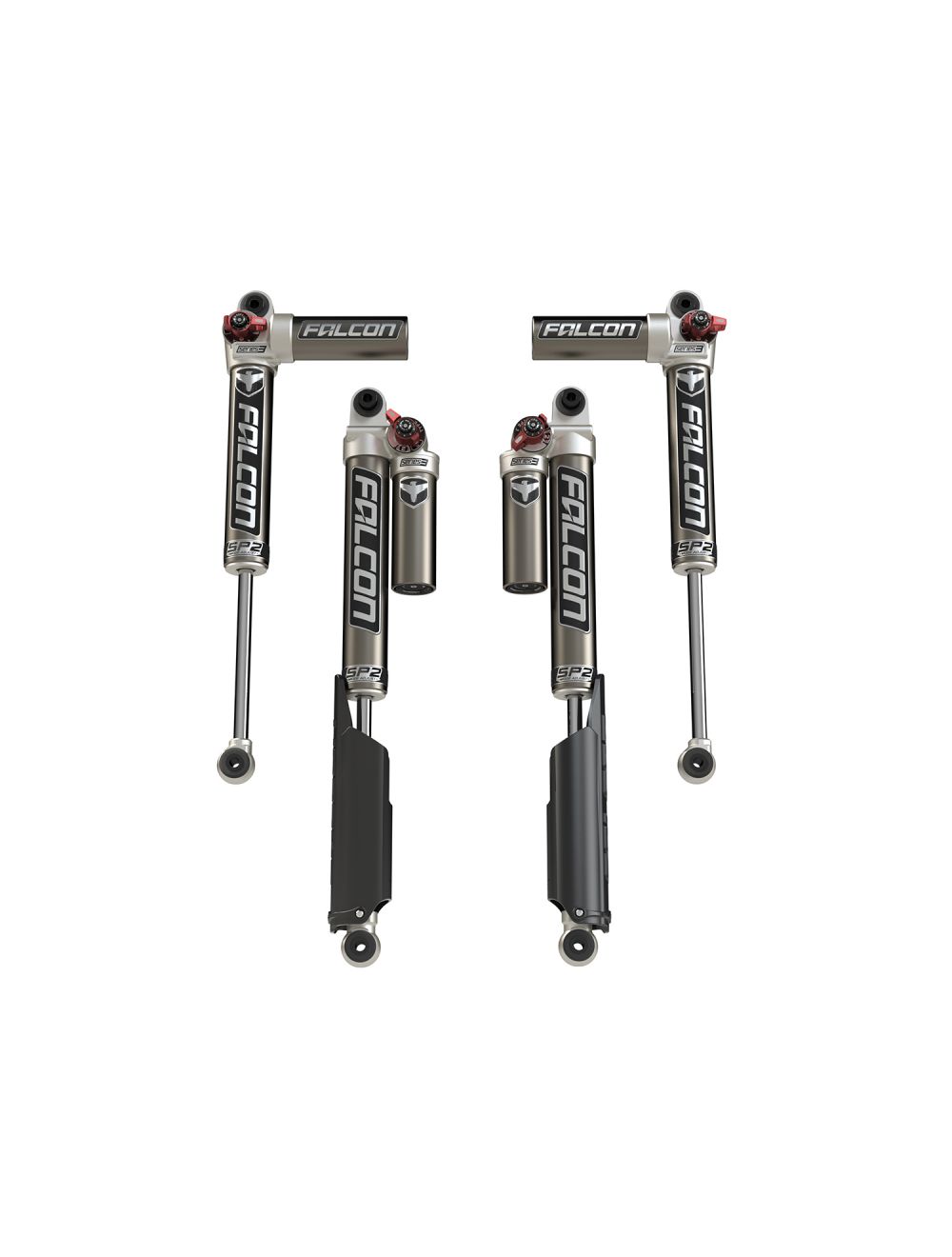

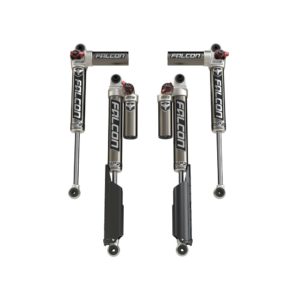

Jeep JL Piggyback Shocks Falcon SP2 3.3 Fast Adjust 0-1.5 Inch Lift All 4 For 10-Pres Wrangler JL 4 Door TeraFlex

Falcon SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability with their easy to use 3-position Fast Adjust Knob. Settings include Soft. Custom. and Firm. The Custom setting incorporates an 8-Position Dial for more precise tuning.

High-Value Performance is the driving force behind our vehicle-specific dampers for Jeeps. trucks. and SUVs. These Jeep-specific shock absorbers deliver increased stability. improved ride quality. and comfort for daily driven vehicles as well as race-inspired performance. handling. and stability for off-road rigs. Falcon Performance Shocks by TeraFlex.
Fits:

• JL Wrangler Unlimited (4 Door)
• 0-1.5 inch Lift

Includes:

• SP2 3.3 Fast Adjust Piggyback Shocks – all 4
• Rear roost guards – pair
• All necessary hardware

Features and Benefits:

• SP2 3.3 Fast Adjust Piggyback Shocks:
  • SP2 3.3 Fast Adjust Piggyback Shocks offer a wide range of adjustability for specific terrain and/or handling characteristics
  • Fast Adjust Knob w/ 3 compression settings for large damping adjustments
  • Settings include: Soft. Medium. Firm
  • Custom setting includes an 8-Position Dial for finer damping adjustments
  • SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings
  • Ideal for daily driven Jeeps as well as the serious enthusiast wanting to adjust damping for all driving conditions
• JL Falcon Shocks:
  • JL corner-specific shock absorber w/ race-inspired performance
  • Front lower offset eyelet design provides maximum shock body to frame clearance during articulation
  • Rear roost guards prevent shock shaft damage from rocks kicked up by the tires
  • SP2 Mode Adjust tunes compression and rebound for Soft or Performance settings
• Falcon Series 3 Piggyback Shocks:
  • Piggyback design increases oil and gas capacity for reduced heat
  • Flows 6x more oil than restrictive reservoir hose designs
  • Eliminates common leakage issues found in banjo and swivel fittings
  • Front shocks’ unique horizontal piggyback reservoir increases tire clearance
  • Cartridge Upgrade Kits are available separately
• SP2 Mode Adjust Shocks:
  • Choose between Soft and Performance modes during install
  • Tunes both compression and rebound
  • Soft mode allows a partial bypass of the main piston for a softer ride
  • During aggressive driving. Soft mode retains performance tuning for optimal handling
  • Soft mode recommended for rough terrain/surfaces and cold weather
  • Performance mode recommended for max on- and off-road handling. stability. and control
• Falcon Performance Shocks (All):
  • Vehicle-specific shock absorbers
  • Race-inspired performance for increased vehicle stability
  • Improved dynamic roll control and low-speed damping
  • Dramatic improvement in on-road comfort and off-road performance
  • Optimized fitment for unobstructed suspension travel and articulation
  • 2.25 inch shock body provides optimal performance
  • 6061-T6 aluminum alloy shock body resists Impact to protect internal components
  • Smooth honed internal shock body surface for long-term performance
  • 3/4 inch induction hardened chrome plated shaft resists rock damage. corrosion. and shaft buckling
  • Large shaft diameter provides a wide range of adjustment on adjustable shocks
  • Hard anodized 6061-T6 aluminum alloy billet piston
  • 1-piece Teflon bronze piston wear band w/ O-ring
  • VOD (Volume Optimized Damping) features a digressive linear piston for quicker ramp-up and increased damping volume
  • VOD reduces shock bottoming at full compression or over uneven terrain
  • OGS (Oil/Gas Separator) prevents cavitation
  • High-viscosity. full synthetic Red Line shock oil for consistent performance across all temperatures
  • Synthetic formula also contains special anti-wear and lubricity agents
  • 1.000-hour salt spray corrosion resistance test on all hardware
  • Serviceable and rebuildable (factory serviced)
  • Designed. engineered. and assembled in-house from domestic and globally sourced components
  • Patented design
  • 3-year warranty

Note(s):

• Bump stop configuration varies depending on shock absorber collapsed length. tire size. and fenders – See instructions for proper configuration for your application.
• May require 2 inch Bump Stop Strike Pad Extension Kit (part number 1959500) and/or 0.5 inch Bump Stop Strike Pad Shim Kit(s) (part number 1959300).
• Install Time: 1.5 Hours

– TERA 11-02-33-400-000

Fitment: 2007,2010,Jeep,Wrangler,X|2007,2010,Jeep,Wrangler,Unlimited X|2007,2021,Jeep,Wrangler,Unlimited Sahara|2007,2021,Jeep,Wrangler,Rubicon|2007,2021,Jeep,Wrangler,Unlimited Rubicon|2007,2017,Jeep,Wrangler,Sahara|2010,2021,Jeep,Wrangler,Sport|2010,2021,Jeep,Wrangler,Unlimited Sport|2011,2011,Jeep,Wrangler,Unlimited 70th Anniversary|2011,2011,Jeep,Wrangler,70th Anniversary|2016,2016,Jeep,Wrangler,Unlimited Sport S|2016,2016,Jeep,Wrangler,Unlimited 75th Anniversary|2016,2016,Jeep,Wrangler,Sport S|2016,2016,Jeep,Wrangler,75th Anniversary|2018,2018,Jeep,Wrangler JK,Sport|2018,2018,Jeep,Wrangler JK,Unlimited Sport|2018,2018,Jeep,Wrangler JK,Unlimited Sport S|2018,2018,Jeep,Wrangler JK,Unlimited Sahara|2018,2018,Jeep,Wrangler JK,Unlimited Rubicon|2018,2018,Jeep,Wrangler JK,Rubicon|2018,2019,Jeep,Wrangler,Unlimited Moab|2018,2018,Jeep,Wrangler JK,Sport S|2018,2018,Jeep,Wrangler JK,Sahara|2018,2021,Jeep,Wrangler,Sport S|2018,2021,Jeep,Wrangler,Unlimited Sport S|2021,2021,Jeep,Wrangler,80th Anniversary|2021,2021,Jeep,Wrangler,Willys|2021,2021,Jeep,Wrangler,Unlimited Willys Sport|2021,2021,Jeep,Wrangler,Willys Sport|2021,2021,Jeep,Wrangler,Unlimited Willys|2021,2021,Jeep,Wrangler,Islander|2021,2021,Jeep,Wrangler,Unlimited Sport Altitude|2021,2021,Jeep,Wrangler,Freedom|2021,2021,Jeep,Wrangler,Unlimited Sahara Altitude|2021,2021,Jeep,Wrangler,Unlimited Rubicon 392|2021,2021,Jeep,Wrangler,Unlimited High Altitude|2021,2021,Jeep,Wrangler,Unlimited Freedom|2021,2021,Jeep,Wrangler,Unlimited 80th Anniversary|2021,2021,Jeep,Wrangler,Unlimited Islander

Doors: 4 Door

Location:

Lift: 0-1,5 Inch

Tire size max:

Includes Shocks: Yes

Installation Time:

Material: Aluminum Alloy

UPC Code:

Last Update: 2022-07-08 15:27:38

Installation instruction : download
