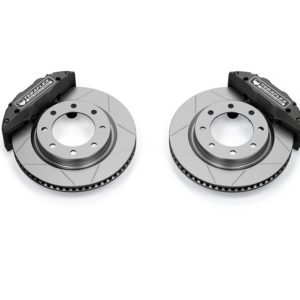

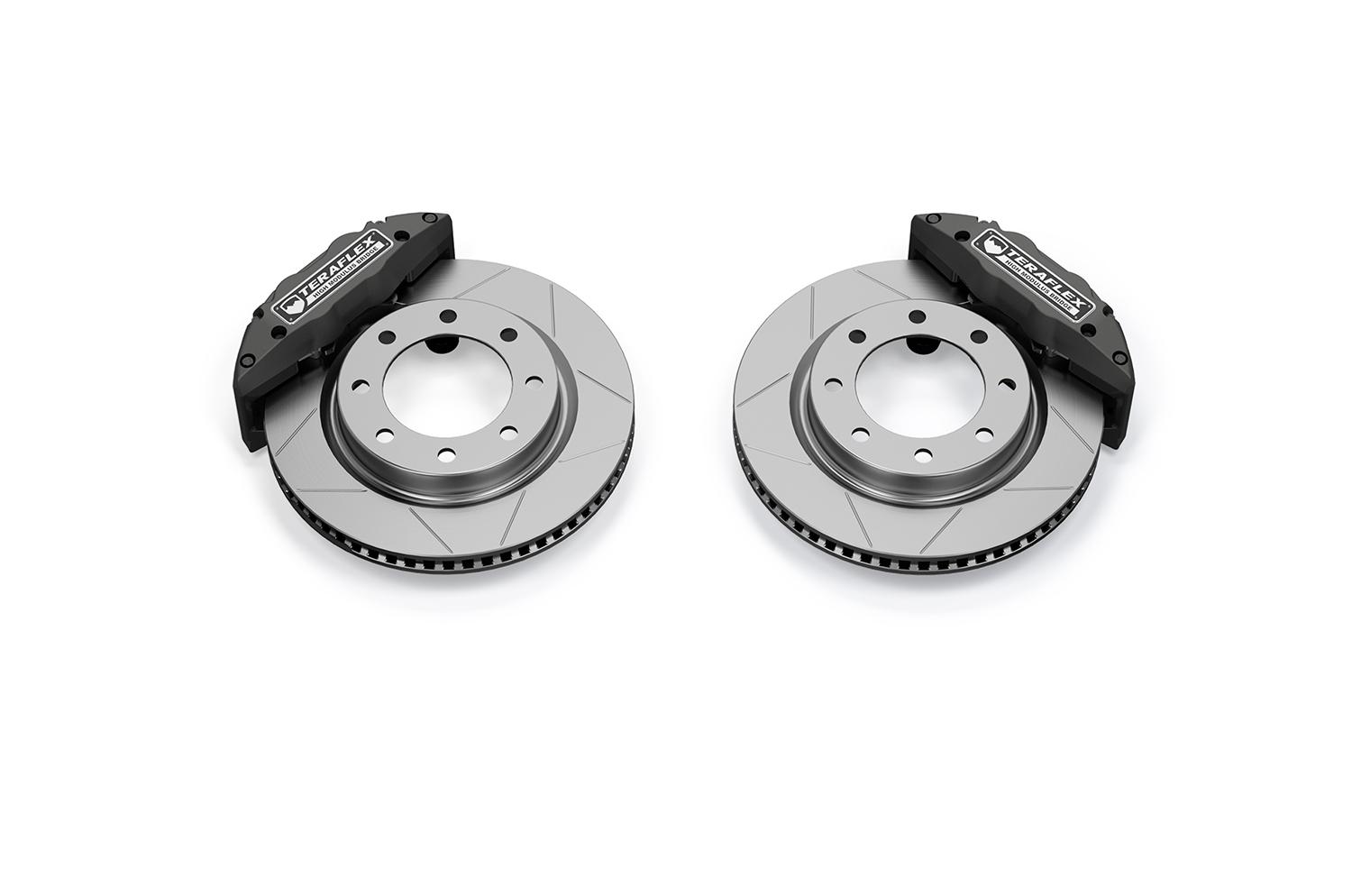

Jeep JK/JL/Gladiator Delta Front Brake Kit 8×6.5 Inch For 07-Pres Wrangler JK JL/20-Pres Gladiator TeraFlex

The TeraFlex Delta Front Brake Kit is the ultimate upgrade for JL and JK Wrangler/Unlimited and JT Gladiator models with oversized and heavier wheels/tire combos requiring increased braking performance. A must for 33-42 inch tires or heavy-laden overland rigs. Includes all the components required to upgrade the front axle.

Delta Brake Calipers feature a high-modulus bridge. Modulus measures a material’s resistance to elastic (recoverable) deformation under load. A stiff material has a high modulus. which means it only changes shape slightly under high elastic loads before returning to its normal shape.
Fits:

• JL Wrangler (2 Door)
• JL Wrangler Unlimited (4 Door)
• JK Wrangler (2 Door)
• JT Gladiator (pickup)
• JK Wrangler Unlimited (4 Door)
• Minimum Wheel Diameter: 17 inch
• Back Spacing: 4.75 inch or less
• Bolt Pattern: 8×6.5 inch

Includes:

• High-Modulus Brake Caliper Kit w/ Pads – Front (part number 4403401)
• 14 inch X 1.25 inch Vented and Slotted Rotors w/ 8×6.5 inch – Front (part number 4403455)
• All necessary hardware

Features and Benefits:

• Delta Brake System:
  • Significantly improved braking performance over factory brake system
  • 100 percent bolt-on upgrade w/ basic hand tools
  • Balanced front to rear brakes tuned specifically for lifted vehicles
  • Brake bias and piston sizes optimized for JL and JK Wrangler/Unlimited and JT Gladiator models
  • Designed to work w/ stock proportioning valve and ABS
  • 3-year warranty
• High-Modulus Brake Calipers:
  • Opposed 4-piston caliper design w/ 2 inch front pistons
  • Same flow rate as factory 2-piston calipers – 4 pistons move each side half the distance instead of 2 pistons only moving one side the full distance
  • EPDM synthetic boot material keeps water and other contaminants away from piston
  • Hard-chrome coating on piston reduces friction to improve performance
  • 4-piece High-Modulus bridge caliper design combines heat-treated 4140 cast steel bridges w/ 6061-T6 forged aluminum piston housings
  • Steel bridges resist bending/flex better than standard aluminum or cast iron
  • Improved stiffness = consistent brake feel/modulation during brake application and release
  • Low-profile bridge accepts 14 inch diameter rotors behind 17 inch wheels
  • 1.000-hour salt spray tested zinc- and E-dipped coating on bridges and mounts
  • 300.000 psi steel formed hardware
  • Calipers feature built-in auto bleeding check ball. valve. and spring for easy bleeding
  • Hard-coat anodized. scratch-resistant piston bores
• Brake Rotors:
  • Massive 14 inch x 1.25 inch vented rotors for superior stopping performance
  • Larger diameter rotors offer more mechanical advantage for more stopping power
  • Heat-treated. heavy cast-iron rotors offer better heat absorption
  • Mill-balanced. vented rotors for maximum heat dissipation
  • Included slotted rotors offer better gas dissipation than smooth rotors
  • GEOMET coating on non-friction surfaces resists corrosion
• Brake Pads:
  • Proprietary composite-resin. semi-metallic pads provide excellent full temperature stopping power for maximum initial speed scrub w/ increased pad life and reduced noise and dust
  • Drop-in pad design – no need to disassemble calipers to replace pads
• Stock Brake Rotor Reference:
  • JL Sahara/Rubicon front: 12.9 inch x 1.1 inch (330mm x 28mm) vented rotors
  • JL Sahara/Rubicon rear: 13.4 inch x 0.55 inch (342mm x 14mm) solid rotors
  • JL Sport front: 12.9 inch x 0.94 inch (330mm x 24mm) vented rotors
  • JL Sport rear: 12.9 inch x 0.47 inch (328mm x 12mm) solid rotors
  • JK front and rear: 11.9 inch x 1.1 inch (302mm x 28mm) vented rotors (U.S.-spec)

Notes:

• Requires a minimum wheel diameter of 17 inch.
• On JK models. we recommend upgrading the stock master cylinder and brake booster to the Mopar Master Cylinder and Brake Booster Kit (part number P5160050). Contact your Mopar dealer for availability.
• Install Time: 2 Hours

– TERA 4403481

Fitment: 2007,2010,Jeep,Wrangler,X|2007,2021,Jeep,Wrangler,Rubicon|2007,2010,Jeep,Wrangler,Unlimited X|2007,2021,Jeep,Wrangler,Unlimited Sahara|2007,2021,Jeep,Wrangler,Unlimited Rubicon|2007,2017,Jeep,Wrangler,Sahara|2010,2021,Jeep,Wrangler,Unlimited Sport|2010,2021,Jeep,Wrangler,Sport|2011,2011,Jeep,Wrangler,Unlimited 70th Anniversary|2011,2011,Jeep,Wrangler,70th Anniversary|2016,2016,Jeep,Wrangler,Unlimited 75th Anniversary|2016,2016,Jeep,Wrangler,75th Anniversary|2016,2016,Jeep,Wrangler,Unlimited Sport S|2016,2016,Jeep,Wrangler,Sport S|2018,2018,Jeep,Wrangler JK,Sport S|2018,2018,Jeep,Wrangler JK,Unlimited Sport|2018,2018,Jeep,Wrangler JK,Unlimited Sport S|2018,2018,Jeep,Wrangler JK,Unlimited Sahara|2018,2018,Jeep,Wrangler JK,Unlimited Rubicon|2018,2019,Jeep,Wrangler,Unlimited Moab|2018,2021,Jeep,Wrangler,Unlimited Sport S|2018,2021,Jeep,Wrangler,Sport S|2018,2018,Jeep,Wrangler JK,Rubicon|2018,2018,Jeep,Wrangler JK,Sport|2018,2018,Jeep,Wrangler JK,Sahara|2020,2021,Jeep,Gladiator,Sport S|2020,2021,Jeep,Gladiator,Rubicon|2020,2020,Jeep,Gladiator,Launch Edition|2020,2021,Jeep,Gladiator,Altitude|2020,2021,Jeep,Gladiator,Mojave|2020,2021,Jeep,Gladiator,Overland|2020,2021,Jeep,Gladiator,Sport|2021,2021,Jeep,Wrangler,Willys Sport|2021,2021,Jeep,Gladiator,80th Anniversary|2021,2021,Jeep,Wrangler,Unlimited Willys Sport|2021,2021,Jeep,Wrangler,Willys|2021,2021,Jeep,Gladiator,Willys|2021,2021,Jeep,Wrangler,Unlimited Willys|2021,2021,Jeep,Gladiator,Willys Sport|2021,2021,Jeep,Wrangler,Freedom|2021,2021,Jeep,Wrangler,Unlimited Sport Altitude|2021,2021,Jeep,Wrangler,80th Anniversary|2021,2021,Jeep,Wrangler,Unlimited Sahara Altitude|2021,2021,Jeep,Wrangler,Unlimited Rubicon 392|2021,2021,Jeep,Wrangler,Unlimited Islander|2021,2021,Jeep,Wrangler,Unlimited High Altitude|2021,2021,Jeep,Wrangler,Unlimited Freedom|2021,2021,Jeep,Gladiator,High Altitude|2021,2021,Jeep,Wrangler,Islander|2021,2021,Jeep,Wrangler,Unlimited 80th Anniversary

Doors: 2 Door|4 Door

Location:

Lift:

Tire size max: 33-42 Inch

Includes Shocks:

Installation Time:

Material:

UPC Code:

Last Update: 2022-07-08 15:28:17

Installation instruction : download
