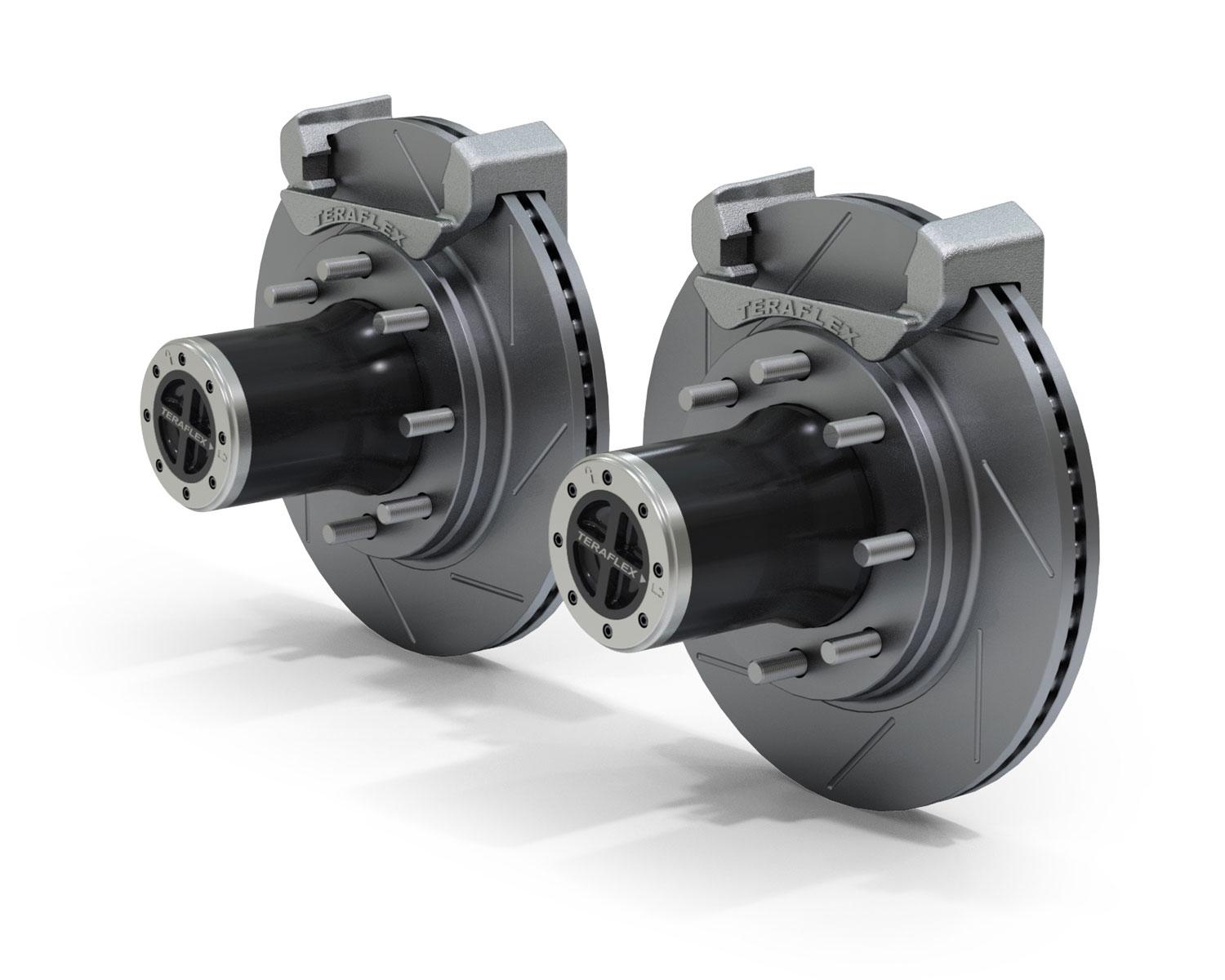

Jeep JK Front 8-Lug Full-Float Locking Hub Conversion Kit w/ Performance Slotted Rotors 07-18 Wrangler JK TeraFlex

Upgrade your Dana 30 or Dana 44 front axle with this TeraFlex JK Front 8-Lug Full-Float Locking Hub Conversion Kit. Increasing the distance between the inner and outer wheel bearings within the hub dramatically reduces bearing load. These bearings ride on a forged 4140 chromoly spindle that accepts readily available low-cost industry standard bearings and seals. Incorporating an 8×6.5 inch wheel bolt pattern allows use of one-ton Dana 60 components.

The proprietary TeraFlex hub design seals the OEM wheel speed sensors from mud. rocks. and other trail hazards ensuring constant data transmission to maintain all ABS and ESP functions.

The SlimLock hub kit features forged 4340 chromoly 35-spline stub shafts. These extremely durable hubs incorporate high surface area engagement. Setting the hubs in the unlocked position makes them perfect for flat towing.
Wheel Bolt Pattern:

• 8 x 6.5 inch

Fits:

• JK Wrangler (2-door)
• JKU Wrangler Unlimited (4-door)

Includes:

• JK Front Performance Slotted Big Rotor Kit (P/N 4303490)
• Sold As A Kit

Notes:

• 2007-2012 Dana 30 axles require new inner shafts w/ larger U-joint end forgings (driver side: P/N 303118; passenger side: P/N 303134).
• All 2013-2018 Dana 30 and Dana 44 JK axles use the same U-joint.
• The Full-Float Kit may not work w/ all wheels. Please verify fitment before installation.
• Brake Booster (P/N 4303450) recommended.
• Install Time: 4 Hours
• SKU: 3034410

– TERA 3034410

Fitment: 2007,2010,Jeep,Wrangler,X|2007,2017,Jeep,Wrangler,Unlimited Rubicon|2007,2017,Jeep,Wrangler,Rubicon|2007,2010,Jeep,Wrangler,Unlimited X|2007,2017,Jeep,Wrangler,Sahara|2007,2017,Jeep,Wrangler,Unlimited Sahara|2010,2017,Jeep,Wrangler,Unlimited Sport|2010,2017,Jeep,Wrangler,Sport|2011,2011,Jeep,Wrangler,70th Anniversary|2011,2011,Jeep,Wrangler,Unlimited 70th Anniversary|2016,2016,Jeep,Wrangler,75th Anniversary|2016,2016,Jeep,Wrangler,Sport S|2016,2016,Jeep,Wrangler,Unlimited Sport S|2016,2016,Jeep,Wrangler,Unlimited 75th Anniversary|2018,2018,Jeep,Wrangler JK,Unlimited Rubicon|2018,2018,Jeep,Wrangler JK,Sport|2018,2018,Jeep,Wrangler JK,Unlimited Sahara|2018,2018,Jeep,Wrangler JK,Sahara|2018,2018,Jeep,Wrangler JK,Unlimited Sport|2018,2018,Jeep,Wrangler JK,Rubicon

Doors: 4 Door|2 Door

Location: Front

Lift:

Tire size max:

Includes Shocks:

Installation Time: 4 Hours

Material: 4140/4340 Chromoly

UPC Code: 843885037132

Last Update: 2022-07-08 15:25:27

Installation instruction : download
